Spring Boot 1.3.x の Web アプリを 1.4.x へバージョンアップする ( 番外編 )( Thymeleaf 3 へのバージョンアップを試してみる )
概要
記事一覧はこちらです。
Spring Boot 1.4 Release Notes に Thymeleaf 3 の記述がありましたので、Thymeleaf 3 へのバージョンアップを試してみます。
今回は試してみるだけでコミットはしません。
参照したサイト・書籍
Spring Boot Reference Guide - 74.9 Use Thymeleaf 3
http://docs.spring.io/spring-boot/docs/current/reference/htmlsingle/#howto-use-thymeleaf-3Thymeleaf 3 ten-minute migration guide
http://www.thymeleaf.org/doc/articles/thymeleaf3migration.htmlSpring Boot 1.4でThymeleaf 3.0系を使うための設定方法
http://qiita.com/kazuki43zoo/items/da64a68b9805e512cdc9Spring Boot 1.4+Thymeleaf 3.0でSpELコンパイラを有効にしてパフォーマンスを向上させよう!!
http://qiita.com/kazuki43zoo/items/f367845d50589281ed46#_reference-bb5b2b46ee255b058fed
目次
- Thymeleaf の定義がある BOM ファイルを探してみる
- build.gradle を変更する
- clean タスク → Rebuild Project → build タスクを実行してみる
- bootRun で起動してみる
- 動作確認
- Thymeleaf 2 でエラーになったことを Thymeleaf 3 ではエラーにならないか試してみる
- 次回は。。。
手順
Thymeleaf の定義がある BOM を探してみる
最初に Spring IO Platform の Athens-SR5 の BOM を見てみます。https://repo1.maven.org/maven2/io/spring/platform/platform-bom/Athens-SR5/platform-bom-Athens-SR5.pom を見ると、その中には “Thymeleaf” に関する定義はありませんでした。
次に Athens-SR5 の BOM の先頭に記述されている spring-boot-starter-parent の BOM を見ます。https://repo1.maven.org/maven2/org/springframework/boot/spring-boot-starter-parent/1.4.6.RELEASE/spring-boot-starter-parent-1.4.6.RELEASE.pom を見ると、この中にも “Thymeleaf” に関する定義はありませんでした。
次に spring-boot-starter-parent の BOM の先頭に記述されている spring-boot-dependencies の BOM を見ます。https://repo1.maven.org/maven2/org/springframework/boot/spring-boot-dependencies/1.4.6.RELEASE/spring-boot-dependencies-1.4.6.RELEASE.pom を見ると、以下の “Thymeleaf” に関する定義が記述されていました。
<properties> .......... <thymeleaf.version>2.1.5.RELEASE</thymeleaf.version> <thymeleaf-extras-springsecurity4.version>2.1.3.RELEASE</thymeleaf-extras-springsecurity4.version> <thymeleaf-extras-conditionalcomments.version>2.1.2.RELEASE</thymeleaf-extras-conditionalcomments.version> <thymeleaf-layout-dialect.version>1.4.0</thymeleaf-layout-dialect.version> <thymeleaf-extras-data-attribute.version>1.3</thymeleaf-extras-data-attribute.version> <thymeleaf-extras-java8time.version>2.1.0.RELEASE</thymeleaf-extras-java8time.version> .......... </properties> .......... <dependencyManagement> <dependencies> .......... <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-thymeleaf</artifactId> <version>1.4.6.RELEASE</version> </dependency> .......... <dependency> <groupId>com.github.mxab.thymeleaf.extras</groupId> <artifactId>thymeleaf-extras-data-attribute</artifactId> <version>${thymeleaf-extras-data-attribute.version}</version> </dependency> .......... <dependency> <groupId>nz.net.ultraq.thymeleaf</groupId> <artifactId>thymeleaf-layout-dialect</artifactId> <version>${thymeleaf-layout-dialect.version}</version> </dependency> .......... <dependency> <groupId>org.thymeleaf</groupId> <artifactId>thymeleaf</artifactId> <version>${thymeleaf.version}</version> </dependency> <dependency> <groupId>org.thymeleaf</groupId> <artifactId>thymeleaf-spring4</artifactId> <version>${thymeleaf.version}</version> </dependency> <dependency> <groupId>org.thymeleaf.extras</groupId> <artifactId>thymeleaf-extras-conditionalcomments</artifactId> <version>${thymeleaf-extras-conditionalcomments.version}</version> </dependency> <dependency> <groupId>org.thymeleaf.extras</groupId> <artifactId>thymeleaf-extras-java8time</artifactId> <version>${thymeleaf-extras-java8time.version}</version> </dependency> <dependency> <groupId>org.thymeleaf.extras</groupId> <artifactId>thymeleaf-extras-springsecurity4</artifactId> <version>${thymeleaf-extras-springsecurity4.version}</version> </dependency> .......... </dependencies> </dependencyManagement>
以下の値を設定すればよさそうです。
- thymeleaf.version
- thymeleaf-extras-springsecurity4.version
- thymeleaf-extras-conditionalcomments.version
- thymeleaf-layout-dialect.version
- thymeleaf-extras-data-attribute.version
- thymeleaf-extras-java8time.version
build.gradle を変更する
jcenter, mavenCentral で Thymeleaf の各ライブラリのバージョンを確認した後、build.gradle の dependencyManagement の記述を以下のように変更します。
dependencyManagement { imports { mavenBom("io.spring.platform:platform-bom:Athens-SR5") { bomProperty 'guava.version', '21.0' bomProperty 'thymeleaf.version', '3.0.6.RELEASE' bomProperty 'thymeleaf-extras-springsecurity4.version', '3.0.2.RELEASE' bomProperty 'thymeleaf-layout-dialect.version', '2.2.1' bomProperty 'thymeleaf-extras-java8time.version', '3.0.0.RELEASE' } } }
- 以下の記述を追加します。
bomProperty 'thymeleaf.version', '3.0.6.RELEASE'
bomProperty 'thymeleaf-extras-springsecurity4.version', '3.0.2.RELEASE'
bomProperty 'thymeleaf-layout-dialect.version', '2.2.1'
bomProperty 'thymeleaf-extras-java8time.version', '3.0.0.RELEASE'
変更後、Gradle Tool Window の左上にある「Refresh all Gradle projects」ボタンをクリックして更新します。
Project Tool Window の External Libraries を見ると、指定したバージョンのライブラリがダウンロードされて依存関係にセットされていることが確認できます。
clean タスク → Rebuild Project → build タスクを実行してみる

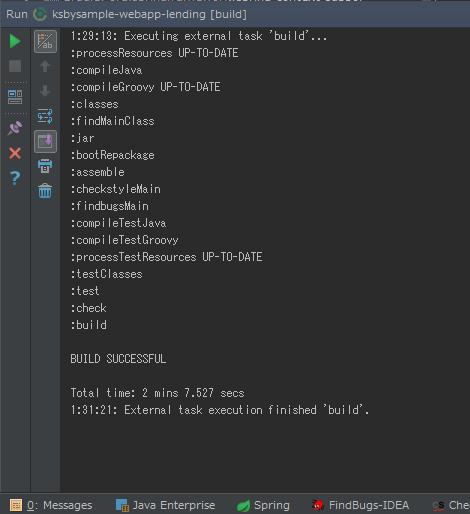

clean タスク → Rebuild Project → build タスクを実行してみると、何のエラーも出ず “BUILD SUCCESSFUL” の文字が出力されました。

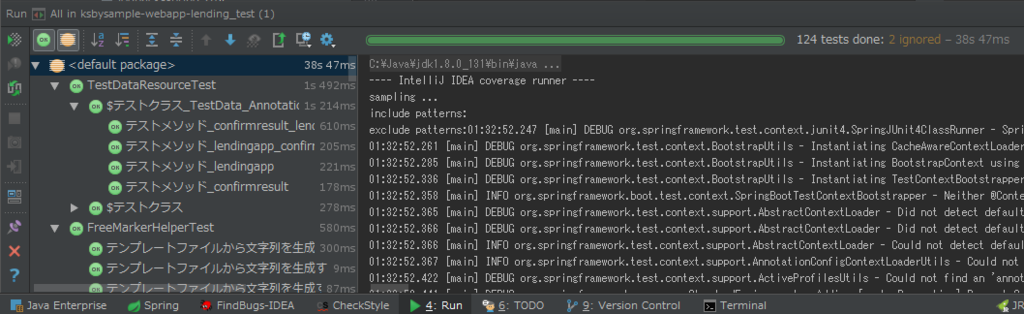

Project Tool Window で src/test を選択した後、コンテキストメニューを表示して「Run ‘All Tests’ with Coverage」を選択してテストを実行しても、テストが全て成功することが確認できます。
bootRun で起動してみる
bootRun で Tomcat を起動してみるとエラーは出ずに “Started Application in …” のログが出力されました。
が、途中で 2017-05-10 01:36:50.476 WARN 9576 --- [ restartedMain] org.thymeleaf.templatemode.TemplateMode : [THYMELEAF][restartedMain] Template Mode 'HTML5' is deprecated. Using Template Mode 'HTML' instead.
というログも出力されていました。
Spring Boot Reference Guide の 74.9 Use Thymeleaf 3 に warning message を避けたければ spring.thymeleaf.mode
に HTML
を設定するよう記述されていましたので、この設定を反映します。
application.properties を以下のように変更します。
spring.freemarker.cache=true spring.freemarker.settings.number_format=computer spring.freemarker.charset=UTF-8 spring.freemarker.enabled=false spring.freemarker.prefer-file-system-access=false spring.thymeleaf.mode=HTML valueshelper.classpath.prefix=
spring.thymeleaf.mode=HTML
を追加します。

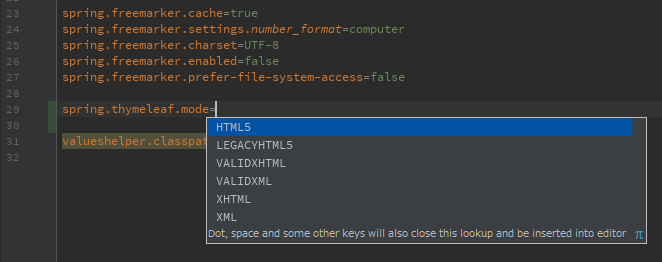

ただし IntelliJ IDEA で spring.thymeleaf.mode
に設定可能な値の候補一覧を表示させると HTML
は出てきません。

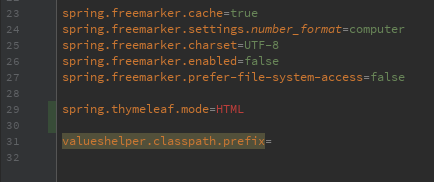

設定した後も HTML
は赤字で表示されます。

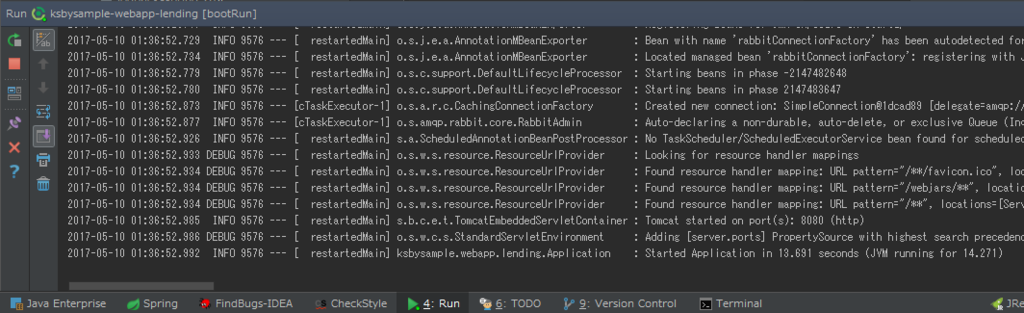

設定はされているはずなので、bootRun で Tomcat を起動してみると、今度は WARN ログは出ずに “Started Application in …” のログが出力されました。
動作確認
jar ファイルを作成して Spring Boot 1.3.x の Web アプリを 1.4.x へバージョンアップする ( その26 )( jar ファイルを作成して動作確認する2 ) に書いた手順で動作確認します。
結果は以下の通りです。
- 動作確認は全て正常に動作しました。ksbysample-webapp-lending.log にもエラーは出力されていません。
- 画面は以前と全く変わらず表示されました。
- Thymeleaf 3 は 2 よりパフォーマンスアップしているという話でしたが、このアプリの画面だと全然分かりませんでした。。。
Thymeleaf 2 でエラーになったことを Thymeleaf 3 ではエラーにならないか試してみる
Thymeleaf を使用する上で手間だと思っていたのは以下の2点です。
- HTML5 では閉じタグは必須ではないが、閉じタグを付けないとエラーになる。例えば
<meta charset="UTF-8">
は末尾を/>
とスラッシュを付けて<meta charset="UTF-8"/>
としないとダメ。<meta charset="UTF-8">
の場合、org.xml.sax.SAXParseException: 要素タイプ"meta"は、対応する終了タグ"</meta>"で終了する必要があります。
のログが出力される。 - 属性は必ず
="..."
を付ける必要がある。例えば xxx 属性を追加する場合、<div class="content-wrapper" xxx>
はエラーになり、<div class="content-wrapper" xxx="">
のようにする必要がある。<div class="content-wrapper" xxx>
の場合、org.xml.sax.SAXParseException: 要素タイプ"div"に関連付けられている属性名"xxx"の後には、' = '文字が必要です。
のログが出力される。
src/main/resources/templates/login.html で試してみます。以下の点を変更します。
<!DOCTYPE html> <html xmlns="http://www.w3.org/1999/xhtml" xmlns:th="http://www.thymeleaf.org"> <head> <meta charset="UTF-8"> <meta http-equiv="X-UA-Compatible" content="IE=edge"> <title>ログイン画面</title> <!-- Tell the browser to be responsive to screen width --> <meta content="width=device-width, initial-scale=1, maximum-scale=1, user-scalable=no" name="viewport"> <!-- Bootstrap 3.3.4 --> <link href="/css/bootstrap.min.css" rel="stylesheet" type="text/css"> <!-- Font Awesome Icons --> <link href="/css/font-awesome.min.css" rel="stylesheet" type="text/css"> <!-- Ionicons --> <link href="/css/ionicons.min.css" rel="stylesheet" type="text/css"> <!-- Theme style --> <link href="/css/AdminLTE.min.css" rel="stylesheet" type="text/css"> <!-- AdminLTE Skins. Choose a skin from the css/skins folder instead of downloading all of them to reduce the load. --> <link href="/css/skins/_all-skins.min.css" rel="stylesheet" type="text/css"> .......... </head> <!-- ADD THE CLASS layout-top-nav TO REMOVE THE SIDEBAR. --> <body class="skin-blue layout-top-nav"> <div class="wrapper"> <!-- Full Width Column --> <div class="content-wrapper"> <div class="container"> <!-- Main content --> <section class="content">
<head>...</head>
内の meta, link タグの末尾の/
を削除します。<div class="content-wrapper">
に xxx 属性を追加して<div class="content-wrapper" xxx>
にします。

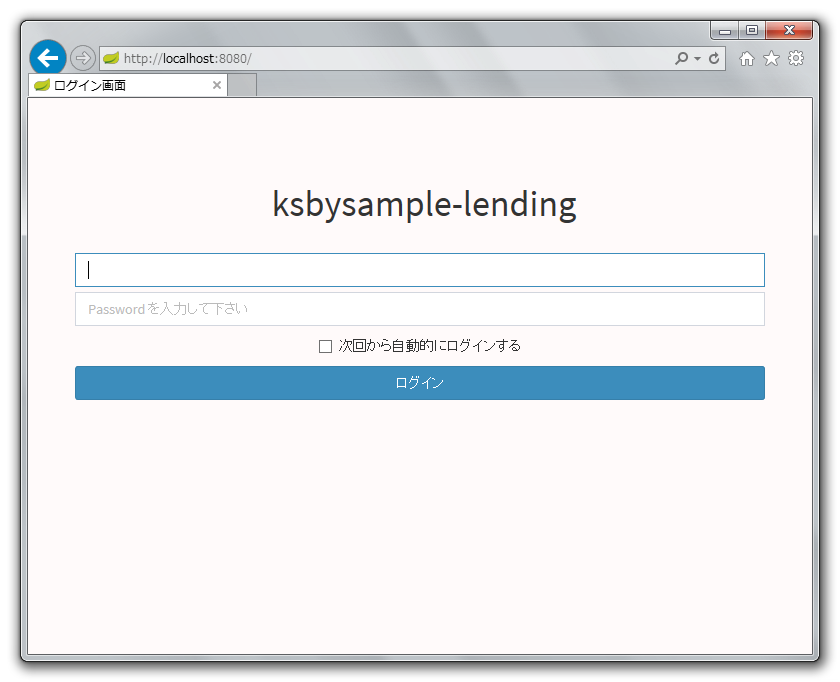

bootRun で Tomcat を起動した後、http://localhost:8080/ にアクセスすると、ログイン画面が表示されました。
また他に気付いたこととして <html xmlns="http://www.w3.org/1999/xhtml" xmlns:th="http://www.thymeleaf.org">
は <html>
でも画面は表示されるのですが(これは Thymeleaf 2 でも表示されます)、<html xmlns="http://www.w3.org/1999/xhtml" xmlns:th="http://www.thymeleaf.org">
にしないと IntelliJ IDEA で th:
属性の補完が効かなくなりますので、これはこのままにします。
次回は。。。
Thymeleaf 3 ten-minute migration guide にいろいろ面白そうな機能が書かれているので、試してみます。
履歴
2017/05/10
初版発行。
